The interface for collecting human feedback

The subjective feedback scales have 6-point for evaluating the naturalness of a pair of chord progressions, A and B:

A is much more natural
A is a little more natural
Both are natural
Both are unnatural
B is a little more natural
B is much more natural

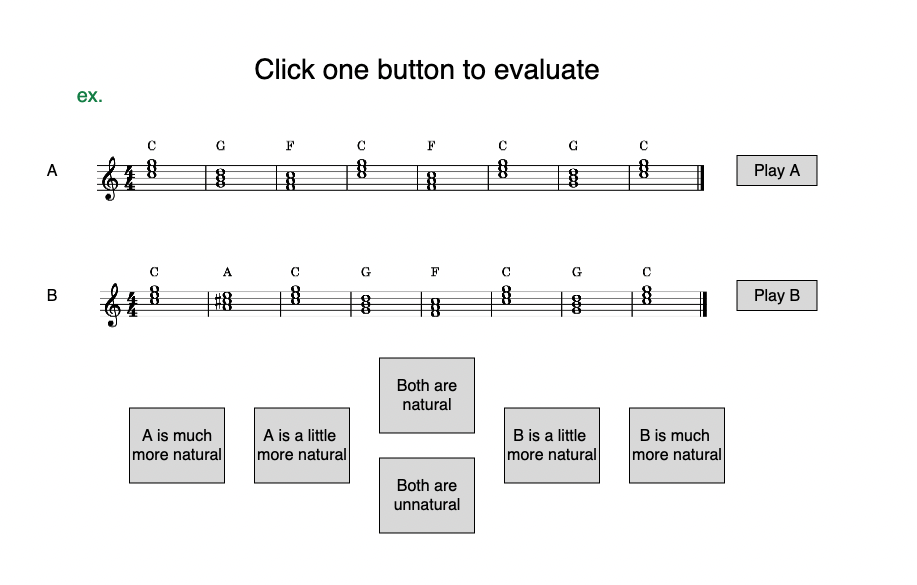

Figure. A The interface for collecting human feedback.

In this feedback, the listener answers more left button if the data on the left $\hat{x}_n+\Delta x_n^{(r)}$ (chord progression A.) is natural and vice versa. In particular, the middle evaluation $\Delta D\left(x_n^{(r)}\right)=0$ can be taken as “I. Both are natural” and “II. Both are unnatural” as below:

$\Delta D\left(\hat{x}_n+\Delta x_n^{(r)}\right)=\Delta D\left(\hat{x}_n-\Delta x_n^{(r)}\right)=1$
$\Delta D\left(\hat{x}_n+\Delta x_n^{(r)}\right)=\Delta D\left(\hat{x}_n-\Delta x_n^{(r)}\right)=0$

Fujii et al.¹ doesn’t distinguish between these two types of evaluations. Thus we distinguish between these two types of evaluations in this study.

Generated chord progressions

These are the most natural chord progressions generated from 15 and 15 + feedback.

Appendix: Tonal Pitch Spaces

We introduce chord proximity, regional proximity, and chord/regional proximity based on the Tonal Pitch Space (TPS)². TPS is a complementary theory to A Generative Theory of Tonal Music (GTTM)³, which is a cognitive tonal music theory that focuses on structure. TPS considers the mathematical structure of music, such as the circle of fifths and chord compositions.

Note: To avoid duplicating mathematical notations and symbols in our paper, some notations on this page might be different from the original TPS.

Chord Proximity

Pitch Class

A pitch class is a pitch-value pair assigned from 0 to 11 according to the pitch name (Tab. 1, hereafter pc as its abbreviation). It is because TPS calculation does not depend on the octave of the pitch. In a pc, for example, $\rm{}C3$ and $\rm{}C4$ belong to the same class $\rm{}C$ and have 0 as a value. And, the same pc applies to homophonic names, so $\rm{}C\sharp3$ and $\rm{}D\flat4$ belong to the same class, $\rm{}C\sharp/D\flat$, and have 1 as a value.

Table. 1 A pitch class.

pc	$\rm{C}$	$\rm{}C\sharp/D\flat$	$\rm{}D$	$\rm{}D\sharp/E\flat$	$\rm{}E$	$\rm{}F$	$\rm{}F\sharp/G\flat$	$\rm{}G$	$\rm{}G\sharp/A\flat$	$\rm{}A$	$\rm{}A\sharp/B\flat$	$\rm{}B$
value	0	1	2	3	4	5	6	7	8	9	10	11

Basic Space

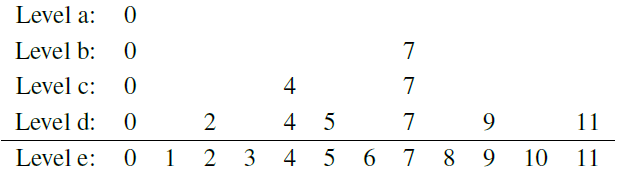

The basic space is a two-dimensional space with the pc and the influence as four levels and indicates how influential a note is in a chord. Tab. 2 shows the meaning of influence levels and Fig. 1 shows the basic space of $\rm{I}/\mathbf{C}$. The closer a note is to Level a, the more influential it is in the chord (e.g., $\rm{}C(0)$ is the most influential note in $\rm{I}/\mathbf{C}$).

Table. 2 Level and its description in the basic space.

Level	Description
Level a	The root of a chord.
Level b	The root of fifth of a chord.
Level c	The components of a chord.
Level d	The diatonic scale of chord’s key.
Level e	All pitch classes.

Chord Proximity within A Region

Chord proximity is calculated based on two factors: the diatonic circle of fifths(Fig. 2) and the common notes. The diatonic circle of fifths is the diatonic scale arranged in a circle by the chord-circle rule on the basic space, with Roman numerals representing degrees and arithmetic numbers representing the pc values of the root note of the chord. The chord-circle rule can be stated as:

move the pcs at level a-c four diatonic steps to the right or left

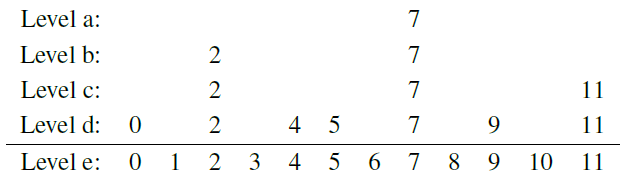

A diatonic step means the movement of a pc on level d. As Fig. 2, applying the chord-circle rule once to the right on $\rm{I}/\mathbf{C}$ (Fig. 1) produces $\rm{V}/\mathbf{C}$(Fig. 3) and to the left produces $\rm{IV}/\mathbf{C}$. Also note that the pc values overlap, so the right of 11 is 0, and the left of 0 is 11.

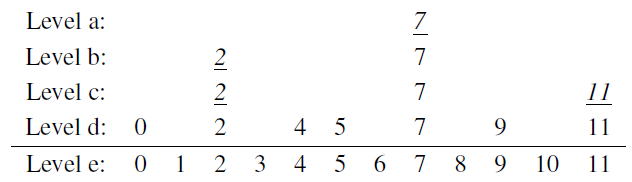

And the common note, another factor of the chord proximity, is the number of distinctive pcs in basic spaces between two chords. For instance, in Fig. 4, underscored numbers mean distinctive pcs between $\rm{I}/\mathbf{C}$ and $\rm{V}/\mathbf{C}$. This figure is like $\rm{V}/\mathbf{C}$ overlain on $\rm{I}/\mathbf{C}$, so the level of pc2 in $\rm{I}/\mathbf{C}$ is 1 and one in $\rm{V}/\mathbf{C}$ is 3, thus the distinctive pc2 is $3-1=2$. From now, we formulate the chord proximity $c$ between a chord $x$ and a chord $y$ as

\[c(x\rightarrow y) = j+k\]

where $j$ is the shortest number of steps in the circle of fifths and $k$ is the number of distinctive pcs (e.g., Fig. 4).

Figure. 2 The diatonic circle of fifths.

Figure. 4 Derivation of chord proximity: I/C → V/C.

\[c(\rm{I}/\mathbf{C}\rightarrow\rm{V}/\mathbf{C})=1+4=5\]

Chord Proximity across Regions

To get chord proximity for chords in different regions, we need an additional measurement, a regional shift. With the same chord proximity and the diatonic circle of fifths, a regional shift is calculated on the chromatic circle of fifths by the regional-circle rule on the basic space (Fig. 5) and the regional-circle rule can be stated as:

move the pcs at level d seven chromatic steps to the right or left

A chromatic step means the movement of a pc on level e. And of course, a regional shift between the same region will be 0. Now we can enlarge the formula $c$ with a regional shift as

\[c(x\rightarrow y) = i+j+k\]

where $i$ is the steps on the region circle, $j$ and $k$ are the same as before. Fig. 6 shows the derivation of chord proximity across regions, $\mathbf{C}$ to $\mathbf{G}$. Here, although $\rm{V}/\mathbf{C}$ and $\rm{I}/\mathbf{G}$ both refer to G-major, $c(\rm{I}/\mathbf{C}\rightarrow\rm{V}/\mathbf{C})=5$ and $c(\rm{I}/\mathbf{C}\rightarrow\rm{I}/\mathbf{G})=7$ mean that the chord proximity will be different depending on their regions. In general, the chord proximity is smaller when interpreted without musical modulation ⁴.

Figure. 5 The chromatic circle of fifths.

Figure. 6 Derivation of chord proximity: I/C → I/G.

\[c(\rm{I}/\mathbf{C}\rightarrow\rm{I}/\mathbf{G})=1+1+5=7\]

Regional Space

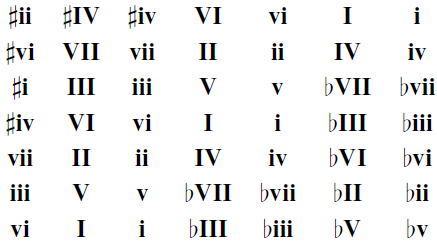

Regional proximity is the proximity of a region in terms of the distance of its local tonic. This step is justified because one strongly hears chords in relation to their local tonic as well as to one overall governing tonic ². In the calculation of regional proximity, we use the regional space, a torus of regions. First we place the tonic $\rm{I}/\mathbf{I}$ and the local tonics $\rm{I}/\mathbf{V}, \rm{I}/\mathbf{IV}, \rm{i}/\mathbf{vi}, \rm{i}/\mathbf{i}$ that have the smallest chord proximity $c=7$ from the tonic on a torus. The region in the circle of fifths ($\rm{I}/\mathbf{V}, \rm{I}/\mathbf{IV}$) placed on the vertical axis, and relative and parallel minor ($\rm{i}/\mathbf{vi}, \rm{i}/\mathbf{i}$) placed on the horizontal axis. Then do this procedure recursively to form a torus, showed in Fig. 7 and Fig. 8.

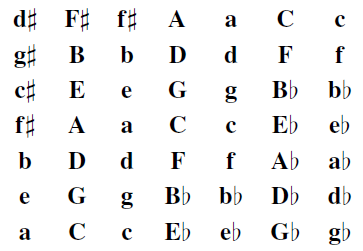

Figure. 8 The regional space (subregions oriented to C-major).

Pivots and Regional Proximity

The regional space suggests a further reason why the above formula for $c$ works for nearby but not distant regions. Nearby regions share chords that can function as pivot chords from one region to another. But as chromatic changes infiltrate more distant regions, direct pivot chords disappear, requiring intermediate pivots that have not yet been taken into account ². From these point of view, the regional proximity from the starting region $\mathbf{S}$ to the destination region $\mathbf{D}$, $\delta\left(\mathbf{S}\rightarrow \mathbf{D}\right)$ can be stated as

\[\delta\left(\mathbf{S}\rightarrow \mathbf{D}\right):= c_1+c_2+\ldots+c_n\]

where $c_1$ is the intermediate chord proximity from the starting region to the tonic of the first pivot region (the first tonic pivots), $c_2$ is the intermediate chord proximity from the tonic of the first pivot region to the second one, and so on. In this calculation, the regional proximity needs the six-regional units called pivot regions (Fig. 9) and tonic of pivot regions called tonic pivots. For example, $\delta\left(\mathbf{F}\rightarrow \mathbf{b}\right)$ can be calculated with pivots $\mathbf{F}\rightarrow \mathbf{C}\rightarrow \mathbf{e}\rightarrow \mathbf{b}$ as in Fig. 10. And as you can see in this example, there are multiple routing for $\mathbf{S}\rightarrow \mathbf{D}$ since pivot regions have at least five candidates (e.g., a routing for $\mathbf{F}\rightarrow \mathbf{b}$ can be interpreted as $\mathbf{F}\rightarrow \mathbf{C}\rightarrow \mathbf{e}\rightarrow \mathbf{b}$, $\mathbf{F}\rightarrow \mathbf{C}\rightarrow \mathbf{G}\rightarrow \mathbf{b}$, etc.). So we’ll use the minimum regional proximity of all regions in this paper. These values can be computed with some algorithms such as Dijkstra’s algorithm and Bellman-Ford algorithm since this routing can be taken as the shortest path from a single source vertex to all of the other vertices in a weighted graph.

Figure. 9 Pivot regions with their proximity value from I and i, respectively.

Figure. 10 An example of routing F→b. Blue rectangles: pivot regions, red circles: the starting point or pivots.

Chord/Regional Proximity

From these definitions, the chord/regional proximity, the chord proximity enlarged with the regional proximity, $\delta$ can be determined as:

\[\delta\left(\rm{D_1}/\mathbf{R_1}\rightarrow \rm{D_2}/\mathbf{R_2}\right) := c\left(\rm{D_1}/\mathbf{R_1}\rightarrow \mathbf{P_1}\right) +\delta\left(\mathbf{P_1}\rightarrow \mathbf{P_n}\right) +c\left(\mathbf{P_n}\rightarrow \rm{D_2}/\mathbf{R_2}\right)\]

where $\rm{D_{\mathit{i}}}/\mathbf{R_{\mathit{i}}}$ is the chord of the degree $\rm{D_{\mathit{i}}}$ on region $\rm{\mathbf{R_{\mathit{i}}}}$ and $\mathbf{P_{\mathit{k}}}$ is a tonic pivot.

K. Fujii, Y. Saito, S. Takamichi, Y. Baba, and H. Saruwatari, HumanGAN: generative adversarial network with human-based discriminator and its evaluation in speech perception modeling, in Proc. ICASSP, pp. 6239-6243, 2020. ↩
F. Lerdahl, Tonal Pitch Space. Oxford University Press, 2001. ↩ ↩² ↩³
F. Lerdahl, R. Jackendoff. A Generative Theory of Tonal Music, Cambridge, Mass: MIT Press, 1983. ↩
S. Sakamoto and S. Tojo. Harmony Analysis of Music in Tonal Pitch Space, in IPSJ SIG Technical Report, Vol.2009-MUS-80, No.9, pp.1-6, 2009, (in Japanese). ↩
